TLB Series Cam Lobe Pump | High Viscosity Metal Rotor Pump for Petrochemical & Wastewater Handling

TLB Series Cam Lobe Pump | High Viscosity Metal Rotor Pump for Petrochemical & Wastewater Handling
TLB Series Cam Lobe Pump | High Viscosity Metal Rotor Pump for Petrochemical & Wastewater Handling

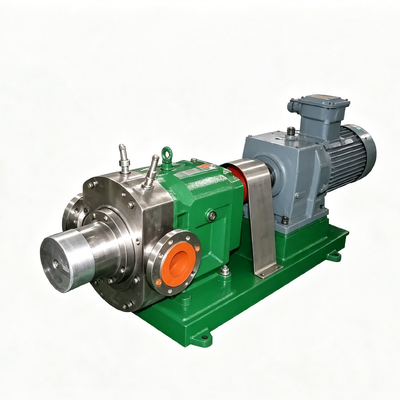

Large Image :  TLB Series Cam Lobe Pump | High Viscosity Metal Rotor Pump for Petrochemical & Wastewater Handling

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: ISO 9001:2015
Model Number: TLB
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 1500-8000 / Set
Packaging Details: Export wooden case packaging, seaworthy and moisture-proof
Delivery Time: 15-30 days after order confirmation
Payment Terms: T/T,L/C
Supply Ability: 200 Sets per Month
Contact Now Chat Now

TLB Series Cam Lobe Pump | High Viscosity Metal Rotor Pump for Petrochemical & Wastewater Handling

Description
Flow Range: 0.5-10 M3/h Discharge Pressure: ≤1.2 MPa
Medium Viscosity: Up To 100,000 CP Solid Particle Content: Up To 30%
Wetted Material: SUS316L / Duplex Steel Medium Temperature: -40 To 200 °C
Highlight:

High Viscosity Transfer Pump

,

Corrosion Resistant Metal Rotor

,

Reversible Self Priming Lobe

TLB Series Cam Lobe Pump | High Viscosity Metal Rotor Pump for Petrochemical & Wastewater Handling
The TLB series cam-type metal rotor pump (rotary lobe pump) is a rugged positive displacement pump built for high-viscosity, high-solid-content and corrosive media transfer in chemical, petroleum, environmental and wastewater treatment applications. Its abrasion-resistant metal rotors and robust casing provide reliable long-term performance even under demanding process conditions.
Working Principle
Two synchronized cam-shaped rotors rotate in opposite directions inside the pump casing, driven by a synchronized gear transmission. As the rotors rotate, the sealed chamber between the rotor lobes and the casing periodically changes in volume. On the inlet side, the expanding chamber creates a partial vacuum that draws the medium in; on the outlet side, the contracting chamber pushes the medium out under pressure. The precise, non-contact clearance between the rotors and the casing enables the pump to convey high-viscosity, abrasive and solid-containing media with strong self-priming and reversible flow capability.
Key Features
  • Corrosion and abrasion resistant metal rotors for harsh chemical media
  • Handles high-viscosity and high-solid-content media up to 100,000 cP
  • Strong self-priming ability and reversible flow direction
  • Non-contact rotor design with minimal wear and low maintenance
  • Explosion-proof and variable-frequency motor options available
Technical Specifications (TLB Series)
Model Flow (m³/h) Pressure (MPa) Speed (r/min) Power (kW) Inlet/Outlet (mm)
TLB-1.5 0.5-1.5 ≤1.2 50-450 0.75-1.5 DN25
TLB-2 1-2 ≤1.2 50-400 1.1-2.2 DN32
TLB-3 2-3 ≤1.2 50-350 1.5-3 DN40
TLB-4 3-4 ≤1.2 50-350 2.2-4 DN50
TLB-5 4-5 ≤1.2 50-300 3-5.5 DN50
TLB-6 5-6 ≤1.0 50-300 4-7.5 DN65
TLB-8 6-8 ≤1.0 50-250 5.5-11 DN80
TLB-10 8-10 ≤1.0 50-250 7.5-15 DN100
Applications
  • Chemical and petrochemical fluid transfer and metering
  • Petroleum, crude oil and fuel oil transfer
  • Wastewater and sewage sludge conveying
  • High-viscosity resin, asphalt, adhesive and slurry transfer
Frequently Asked Questions
Q: What media is this pump best suited for?
A: It is ideal for high-viscosity, high-solid-content and corrosive media such as chemicals, petroleum products, wastewater sludge and slurry.
Q: What is the maximum viscosity it can handle?
A: It can convey media with viscosity up to 100,000 cP.
Q: Can it handle solid particles?
A: Yes, the abrasion-resistant metal rotors allow it to convey media containing solid particles and suspensions.
Q: Is an explosion-proof motor available?
A: Yes, explosion-proof and variable-frequency motor options are available for hazardous environments.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 set. The full TLB series is available.
