2CY High‑Pressure Gear Oil Pump | 1‑58 m³/h, 2.5 MPa for Oil Pressurizing, Loading and Unloading

2CY High‑Pressure Gear Oil Pump | 1‑58 m³/h, 2.5 MPa for Oil Pressurizing, Loading and Unloading
2CY High‑Pressure Gear Oil Pump | 1‑58 m³/h, 2.5 MPa for Oil Pressurizing, Loading and Unloading

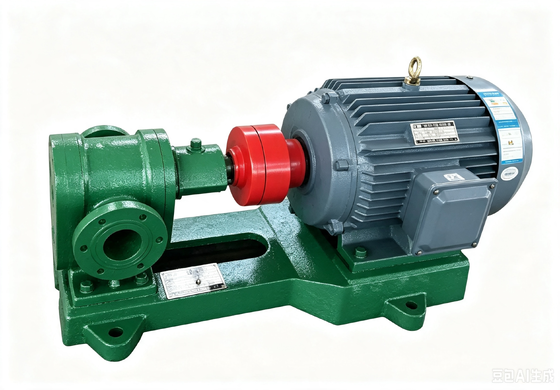

Large Image :  2CY High‑Pressure Gear Oil Pump | 1‑58 m³/h, 2.5 MPa for Oil Pressurizing, Loading and Unloading

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: ISO 9001:2015
Model Number: 2CY Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 800-8000 / Set
Packaging Details: Export wooden case packaging, seaworthy and moisture-proof
Delivery Time: 15-30 days after order confirmation
Payment Terms: T/T,L/C
Supply Ability: 200 Sets per Month
Contact Now Chat Now

2CY High‑Pressure Gear Oil Pump | 1‑58 m³/h, 2.5 MPa for Oil Pressurizing, Loading and Unloading

Description
Flow Range: 1-58 M³/h Rated Pressure: 0.6-2.5 MPa
Medium Viscosity: 5-2000 CP (up To 5000 CP) Medium Temperature: ≤80°C Standard; ≤300°C Custom
Suction Vacuum: ≥5 M Drive Type: Direct Motor Drive
Highlight:

High Pressure Gear Oil Pump

,

Oil Pressurizing Loading Unloading

,

Herringbone Gear 2.5 MPa Output

2CY High‑Pressure Gear Oil Pump | 1‑58 m³/h, 2.5 MPa for Oil Pressurizing, Loading and Unloading
The 2CY high-pressure gear oil pump is a high-pressure external-meshing positive displacement gear pump driven by a pair of high-precision herringbone/spiral heat-treated gears. As the gears rotate, the suction chamber volume increases to draw in liquid, the gear teeth carry the medium to the discharge chamber, and the meshing gears squeeze the medium for high-pressure output. The rated pressure reaches up to 2.5 MPa, making it ideal for oil pressurizing, loading, unloading and lubrication supply.
Key Features
  • High-pressure output with rated pressure up to 2.5 MPa for pressurizing, loading and unloading
  • Herringbone/spiral gears precision-machined and heat-treated for smooth, low-noise running
  • Floating bushings automatically compensate clearance for low internal leakage under high pressure
  • One machine handles medium conveying, suction, pressurizing, loading/unloading and system lubrication
  • Compact structure, easy maintenance; cast iron and stainless steel material options
  • Medium must be free of solid particles and fibers; not suitable for non-lubricating, highly volatile or low flash point media
Technical Specifications (2CY Series)
Item Parameter
Flow Range 1-58 m³/h
Rated Pressure 0.6-2.5 MPa (high pressure version)
Medium Viscosity 5-2000 cP (up to 5000 cP at reduced speed)
Medium Temperature ≤80°C standard; ≤300°C high-temperature custom
Allowable Suction Vacuum ≥5 m
Seal Type Packing seal or mechanical seal
Material Cast iron / 304 / 316 stainless steel
Drive Type Direct motor drive
Applications
  • Oil depot & wharf (oil suction, loading/unloading, pressurized conveying)
  • Industrial equipment (hydraulic lubrication station oil supply, heavy oil and mechanical oil conveying)
  • Petrochemical (lubricant, fuel oil and chemical media similar to lubricating oil)
  • Grain & oil (animal/vegetable oil transfer and pressurized conveying)
Frequently Asked Questions
Q: Can 2CY transport gasoline or benzene (low flash point, high volatility media)?
A: The standard configuration cannot. For low flash point media, a copper gear explosion-proof configuration plus an explosion-proof motor must be used.
Q: How to choose between KCB and 2CY?
A: If the output pressure exceeds 1.6 MPa, choose the 2CY high-pressure gear pump. For medium/low pressure general oil transfer, prefer the KCB with built-in safety valve.
Q: Why does the flow decrease after a period of use?
A: Gear and bushing wear increases the end-face clearance, causing internal backflow under high pressure. Install a filter on the inlet to reduce impurities entering the pump chamber.
Q: Can the 2CY pump run in reverse?
A: The standard model has fixed inlet/outlet and does not support reverse running; reverse running requires a custom structure.
Q: Can it be used above 80°C?
A: The standard model is limited to 80°C; high-temperature conditions require high-temperature resistant materials and seals.
