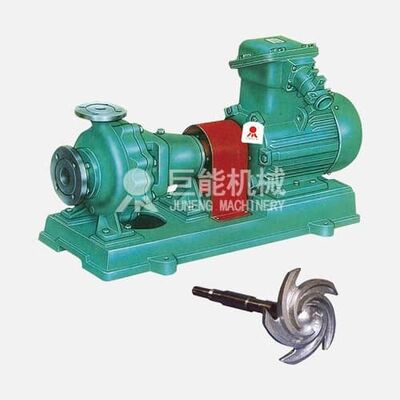

Thermal Insulated IHK Centrifugal Pump | High Head Low Flow for Chemical, Pharma, Petroleum

Thermal Insulated IHK Centrifugal Pump | High Head Low Flow for Chemical, Pharma, Petroleum
Thermal Insulated IHK Centrifugal Pump | High Head Low Flow for Chemical, Pharma, Petroleum

Large Image :  Thermal Insulated IHK Centrifugal Pump | High Head Low Flow for Chemical, Pharma, Petroleum

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: ISO 9001:2015
Model Number: IHK
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 500-5000 / Set
Packaging Details: Export wooden case packaging, seaworthy and moisture-proof
Delivery Time: 15-30 days after order confirmation
Payment Terms: T/T,L/C
Supply Ability: 200 Sets per Month
Contact Now Chat Now

Thermal Insulated IHK Centrifugal Pump | High Head Low Flow for Chemical, Pharma, Petroleum

Description
Flow Range: 6.3-25 M3/h Head Range: 40-80 M
NPSHr: 2.3 M Speed: 2900 Rpm
Medium Temperature: -20 To 180 C (up To 350 C Special) Solid Particle Content: Up To 10%
Highlight:

Chemical Centrifugal Pump

,

Heat Preservation Design

,

Solid Particle Liquid Transfer

Thermal Insulated IHK Centrifugal Pump | High Head Low Flow for Chemical, Pharma, Petroleum
The IHK chemical centrifugal pump (including the IHK-BW heat preservation type) is designed for chemical, petroleum, oil, daily chemical, pharmaceutical and food industries. It is capable of transporting liquids containing up to 10% solid particles and various suspensions. By selecting different materials, it can also handle a wide range of corrosive liquids. The medium temperature range is generally -20 °C to 180 °C, and up to 350 °C with special structure.
Key Features
  • International standard structure with conical open impeller, ideal for liquids with high solid particle content and various suspensions
  • Horizontal radial split with back-open structure, allowing pump maintenance without removing the pipeline or motor
  • High head, low flow and low NPSHr performance
  • Dynamic seal combined with mechanical seal for safe and reliable shaft sealing
  • Replaceable impeller and end-cover wear parts for fast and easy maintenance at low cost
Technical Specifications (IHK Series)
Model Flow Q (m³/h) Head H (m) NPSHr (m) Speed (rpm) Motor Power (kW) Weight (kg) Outline Dimension (mm)
IHK40-25-180 6.3 40 2.3 2900 Y112M-2 4 120 820x270x237
IHK50-32-200 13.5 55 2.3 2900 Y132S2-2 7.5 210 900x400x425
IHK50-32-200A 10 40 2.3 2900 Y132S1-2 5.5 210 900x400x425
IHK65-40-250 25 80 2.3 2900 Y160L-2 18.5 370 1300x650x530
IHK65-40-250A 21 70 2.3 2900 Y160M2-2 15 370 1300x650x530
IHK65-40-250B 18 60 2.3 2900 Y160M1-2 11 370 1300x650x530
Applications
Chemical, petroleum, oil, daily chemical, pharmaceutical and food industries, for transporting liquids with solid particles up to 10%, suspensions, and corrosive media (with suitable materials).
Frequently Asked Questions
Q: What is the maximum solid particle content it can handle?
A: It can transport liquids containing up to 10% solid particles and various suspensions.
Q: What is the working temperature range?
A: Generally -20 °C to 180 °C, and up to 350 °C with a special structure.
Q: Can it transport corrosive liquids?
A: Yes, by selecting suitable contact materials, it can transport a wide range of corrosive liquids.
Q: Is maintenance convenient?
A: Yes, the back-open structure allows disassembly without removing the pipeline or motor, and the wear parts are replaceable.
Q: What is the seal type?
A: It uses a dynamic seal combined with a mechanical seal for safe and reliable operation.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 set. We supply the full IHK series and can customize materials on request.
