SZL-5 Horizontal Pressure Leaf Filter | Small Batch Clarifier for Chemical, Edible Oil, Food and Pharmacy

SZL-5 Horizontal Pressure Leaf Filter | Small Batch Clarifier for Chemical, Edible Oil, Food and Pharmacy
SZL-5 Horizontal Pressure Leaf Filter | Small Batch Clarifier for Chemical, Edible Oil, Food and Pharmacy

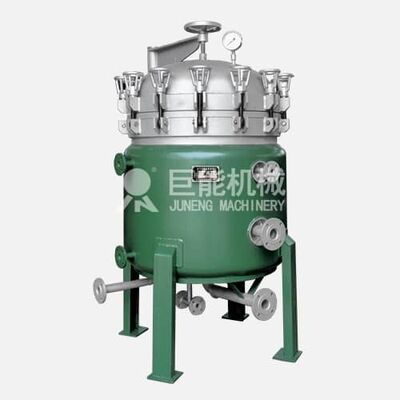

Large Image :  SZL-5 Horizontal Pressure Leaf Filter | Small Batch Clarifier for Chemical, Edible Oil, Food and Pharmacy

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: ISO 9001:2015
Model Number: SZL-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 2,500-6,500 / Set
Packaging Details: Export wooden case packaging, seaworthy and moisture-proof
Delivery Time: 15-30 days after order confirmation
Payment Terms: T/T,L/C
Supply Ability: 50 Sets per Month
Contact Now Chat Now

SZL-5 Horizontal Pressure Leaf Filter | Small Batch Clarifier for Chemical, Edible Oil, Food and Pharmacy

Description
Filtration Area: 5 M2 Treatment Capacity: 7 T/h
Work Pressure: ≤0.3 MPa Inlet/Outlet Caliber: DN50
Filter Cake Diameter: Φ685 Mm Outline Dimension: 1100x1800 Mm
Highlight:

Precision Clarification Filtration

,

Enclosed Solid Liquid Separation

,

Energy Saving Plate Filter

SZL-5 Horizontal Pressure Leaf Filter | Small Batch Clarifier for Chemical, Edible Oil, Food and Pharmacy
The SZL series horizontal plate pressure leaf filter is a high-efficiency, energy-saving, precision clarification and solid-liquid separation equipment featuring fully enclosed operation. It is widely used in chemical, petroleum, food, oil and pharmaceutical industries. We offer the complete SZL series with filtration areas from 1.5 m² to 15 m² to suit different production capacities.
Working Principle
The filter consists of several horizontally arranged filter plates with filter paper clamped between them inside a sealed cylinder. It uses filter paper as the filtration medium to perform pressurized filtration in a closed vessel. During filtration, the filtrate is pumped into the filter body and enters between two filter plates through the small holes on the outer circumference of the plates. The filtrate then passes through the filter paper and the porous support plate, flows into the central channel of the plates, and is discharged from the bottom outlet. After filtration, compressed air is used to press out the residual liquid inside the filter, maximizing liquid recovery.
Key Features
  • High-efficiency precision clarification filtration
  • Enclosed and sealed operation, safe and clean
  • Energy saving with low operating cost
  • Selectable filter paper precision for different filtrate clarity requirements
  • Compressed air cake discharge for maximum liquid recovery
  • Compact structure, easy operation and maintenance
Technical Specifications (SZL Series)
Model Filtration Area (m²) Treatment Capacity (T/h) Work Pressure (MPa) Work Temperature (°C) Inlet/Outlet Caliber Filter Cake Diameter (mm) Shell Diameter (mm) Outline Dimension (mm)
SZL-1.5 1.5 2 ≤0.3 ≤150 DN50 Φ275 400 550*975
SZL-3 3 4 ≤0.3 ≤150 DN50 Φ533 600 900*1700
SZL-5 5 7 ≤0.3 ≤150 DN50 Φ685 800 1100*1800
SZL-7 7 10 ≤0.3 ≤150 DN50 Φ685 800 1100*2050
SZL-10 10 13 ≤0.3 ≤150 DN50 Φ840 900 1200*2000
SZL-12 12 15 ≤0.3 ≤150 DN50 Φ840 900 1200*2150
SZL-15 15 18 ≤0.3 ≤150 DN50 Φ840 900 1200*2400
Applications
Chemical, petroleum, food, oil, pharmaceutical and other industries requiring precision clarification and solid-liquid separation of liquids.
Frequently Asked Questions
What filtration precision can be achieved?
Different precision filter paper can be selected to obtain different filtrate clarity according to your process requirements.
Is the operation fully enclosed?
Yes, the filter works in a sealed vessel with pressurized filtration, ensuring safe, clean and leak-free operation.
How is the filter cake discharged after filtration?
Compressed air is used to press out the residual liquid and dry the filter cake, after which the cake can be removed and the filter paper replaced easily.
What industries can this filter be applied to?
It is widely used in chemical, petroleum, food, oil and pharmaceutical industries for precision clarification and solid-liquid separation.
What is the minimum order quantity?
The minimum order quantity is 1 set. We supply the full SZL series and can customize the filtration area and contact materials on request.
What is the delivery time?
Delivery time is normally 15-30 days after order confirmation, depending on the model and quantity.
