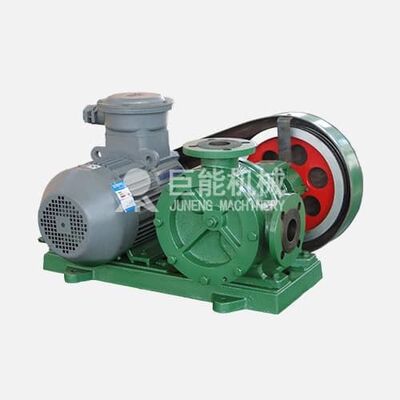

Belt Driven NCB Internal Gear Pump Series for High Viscosity Hot Melt & Asphalt

Belt Driven NCB Internal Gear Pump Series for High Viscosity Hot Melt & Asphalt
Belt Driven NCB Internal Gear Pump Series for High Viscosity Hot Melt & Asphalt

Large Image :  Belt Driven NCB Internal Gear Pump Series for High Viscosity Hot Melt & Asphalt

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: ISO 9001:2015
Model Number: NCB
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 800-5000 / Set
Packaging Details: Export wooden case packaging, seaworthy and moisture-proof
Delivery Time: 15-30 days after order confirmation
Payment Terms: T/T,L/C
Supply Ability: 200 Sets per Month
Contact Now Chat Now

Belt Driven NCB Internal Gear Pump Series for High Viscosity Hot Melt & Asphalt

Description
Model: NCB (Belt Driven) Drive Type: Belt Pulley Reduction
Pressure Range: 0.3-1.5 MPa Flow Range: 1.2-120 M3/h
Motor: Explosion-proof Motor Seal Type: Mechanical Seal
Highlight:

Belt Driven Gear Pump

,

High Torque Adjustable Speed

,

High Viscosity Hot Melt

Belt Driven NCB Internal Gear Pump Series for High Viscosity Hot Melt & Asphalt
Belt Driven NCB Internal Gear Pump

The NCB series internal gear pump is a positive displacement pump designed for high-viscosity fluid transfer. It is widely used for transporting ultra-high and medium-high viscosity media in chemical, petroleum, food, pharmaceutical and daily chemical industries. The belt driven type uses a pulley reduction transmission with the explosion-proof motor and pump body mounted on an integrated base for mature and stable drive.

Key Features
  • Belt pulley reduction drive with explosion-proof motor on a one-piece base
  • Flexible speed control for ultra-high torque output
  • Excellent adaptability to highly viscous media
  • Easy disassembly and convenient maintenance
Technical Specifications (NCB Series)
Model Flow (m³/h) Pressure (MPa) Speed (rpm) Inlet/Outlet Motor Power (kW) Weight (kg) Outline (mm)
NCB1.2/0.31.20.3500G1Y90L-61.110234x140x140
NCB1.8/0.31.80.3500G1 1/2Y100L-61.511254x153x153
NCB3/0.330.3700--Y132S-82.2----
NCB6/0.560.5500DN40Y100L-4370700x420x323
NCB8/0.580.5670----3----
NCB12/0.5120.5290--Y132M1-64----
NCB16/0.5160.5380DN50Y132M2-65.5140800x550x420
NCB20/0.5200.5400--Y132M-47.5----
NCB12/0.7120.7220--Y160M-67.5----
NCB18/0.7180.7310DN80Y160L-611330990x780x510
NCB24/0.5240.5220--Y160M-411----
NCB30/0.5300.5520--Y160L-415----
NCB15/1.5151.5250--Y180L-615----
NCB20/0.7200.7300DN100Y160L-6115601230x1009x740
NCB25/0.7250.7340--Y180L-615----
NCB35/0.5350.5480--Y160L-415----
NCB40/0.5400.5230--Y200L1-618.5----
NCB50/0.5500.5290DN125Y200L2-618.57501340x1022x650
NCB60/0.5600.5350--Y200L2-622----
NCB70/0.5700.5410--Y225M-630----
NCB80/0.5800.5250--Y250M-637----
NCB100/0.51000.5300DN150Y280S-64515801590x1356x840
NCB120/0.51200.5360--Y280M-655----

Note: The motor power should be determined according to the medium viscosity and discharge pressure. For the same port size, higher viscosity media should use lower-speed pumps.

Applications
  • Asphalt
  • Hot melt adhesive
  • High-viscosity resin
  • Thick syrup
  • Paste chemical materials and other ultra-high viscosity media conveying
Frequently Asked Questions
What media is this pump best suited for?
Ultra-high viscosity media such as asphalt, hot melt adhesive, high-viscosity resin and thick syrup.
Can the speed be adjusted?
Yes, the belt pulley reduction drive allows flexible speed adjustment for optimal torque output.
What is the motor type?
It uses an explosion-proof motor mounted on a one-piece base with the pump body.
What is the minimum order quantity?
The minimum order quantity is 1 set. The full NCB series is available.
