TL Series Sanitary Cartridge Filter Housing for Food, Beverage & Pharmaceutical Precision Filtration

TL Series Sanitary Cartridge Filter Housing for Food, Beverage & Pharmaceutical Precision Filtration
TL Series Sanitary Cartridge Filter Housing for Food, Beverage & Pharmaceutical Precision Filtration TL Series Sanitary Cartridge Filter Housing for Food, Beverage & Pharmaceutical Precision Filtration

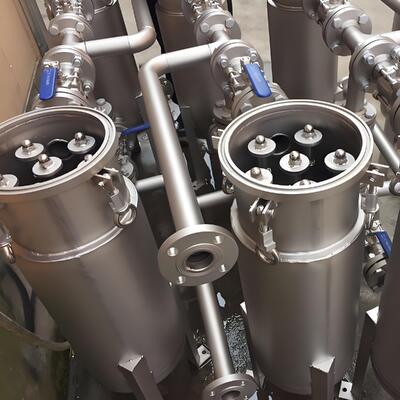

Large Image :  TL Series Sanitary Cartridge Filter Housing for Food, Beverage & Pharmaceutical Precision Filtration

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng Machinery
Certification: ISO 9001:2015, CE, FDA Compliant
Model Number: TL (O) 12 x 500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 500-5000 / Set
Packaging Details: Export-standard plywood case with moisture-proof wrapping and foam protection
Delivery Time: 7-15 working days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 200 Sets per Month
Contact Now Chat Now

TL Series Sanitary Cartridge Filter Housing for Food, Beverage & Pharmaceutical Precision Filtration

Description
Cartridge Configuration: 3/8/10/12/22/30 Cartridges Housing Diameter: 219-600 Mm
Cartridge Length: 10-inch, 20-inch (standard), 30-inch, 40-inch Cartridge Material: PP Melt-blown, PP Pleated, Stainless Steel Sintered
Inlet/Outlet Size: DN40-DN100 (customizable) Design Pressure: 0.4 MPa
Highlight:

Sanitary Cartridge Filter

,

Precision Beverage Clarification

,

Pharmaceutical Grade Filtration

TL Series Sanitary Cartridge Filter Housing for Food, Beverage & Pharmaceutical Precision Filtration

The TL Series Cartridge Filter is an internationally compliant, high-efficiency closed-loop solid-liquid separation system designed for precision clarification. Its unique vertical multi-cartridge configuration delivers exceptional filtrate quality in a compact footprint, making it the preferred choice for sanitary processing environments.

Design and Construction

The TL Series features a sealed cylindrical housing containing multiple filter cartridges mounted vertically on a filter plate. Liquid enters the housing under pressure, passes through the cartridge media from outside to inside, and exits as clarified filtrate. The design allows for rapid cartridge changes and thorough housing cleaning between batches.

  • Cartridge Configurations: Available in 3, 8, 10, 12, 22, and 30 cartridge models with housing diameters from 219mm to 600mm
  • Cartridge Lengths: Standard 20-inch (500mm), with 10-inch (250mm), 30-inch (750mm), and 40-inch (1000mm) options available
  • Filter Media: PP melt-blown, PP pleated, and stainless steel sintered cartridges covering a wide range of micron ratings and chemical compatibilities
  • Connection Sizes: DN40 to DN100 inlet/outlet, customizable to user specifications
  • Operating Parameters: 0.4 MPa design pressure, 120°C maximum temperature
Applications in Food, Beverage and Pharmaceutical Industries
IndustryApplicationRecommended Cartridge
BeveragesFinal clarification of beer, wine, mineral water, fruit juicePP Pleated, 1-10 microns
Food ProcessingEdible oil polishing, syrup filtration, gelatin clarificationPP Melt-blown, 5-25 microns
PharmaceuticalsAPI solution prefiltration, process water sterilizationPP Pleated / Stainless Steel, 0.5-5 microns
CosmeticsCream and lotion polishing, essential oil clarificationPP Melt-blown, 10-50 microns
Photographic ChemicalsEmulsion filtration, developer solution clarificationPP Pleated, 1-5 microns

Ideal for: Food and pharmaceutical manufacturers requiring validated, repeatable precision filtration with full material traceability. The enclosed design prevents product exposure to atmosphere, preserving flavor compounds in beverages and preventing oxidation in sensitive formulations.

Selection Guide: Sizing a TL Series Cartridge Filter for Your Application

Selecting the optimal TL Series configuration requires matching process requirements to the correct housing size, cartridge type, and cartridge count:

ParameterWhat to EvaluateSelection Guidance
Flow RateRequired throughput in m³/h3-cartridge: 1-5 m³/h; 8-cartridge: 3-15 m³/h; 12-cartridge: 5-25 m³/h; 22-cartridge: 10-45 m³/h; 30-cartridge: 15-60 m³/h
Micron RatingTarget particle size removalSterile prefiltration: 0.5-1µ; Clarification: 5-10µ; Coarse prefiltration: 25-100µ
Cartridge MaterialChemical compatibilityPP Melt-blown: general aqueous, cost-effective; PP Pleated: higher dirt-holding, extended life; SS Sintered: high-temp, reusable, chemical resistant
Cartridge LengthFlow per cartridge10-inch: ~0.5 m³/h per cartridge; 20-inch: ~1.5 m³/h; 30-inch: ~2.5 m³/h; 40-inch: ~3.5 m³/h (varies by micron rating and viscosity)
Housing DiameterNumber of cartridges neededSelect housing to match cartridge count: Ø219 (3), Ø273 (8), Ø300 (10), Ø350 (12), Ø400 (15+), Ø500 (22), Ø600 (30)
Operating TemperatureProcess and CIP temperaturePP cartridges: max 80°C; Stainless steel cartridges: max 120°C; housing rated for 120°C
Sanitary RequirementsFDA, GMP, or general industrialSS304 housing for food/beverage; SS316L for pharmaceutical; tri-clamp connections for sanitary lines
Batch SizeVolume per batch and cycle timeCalculate: batch volume ÷ allowable filtration time = minimum flow rate; select cartridge count to exceed this by 20%

Pro Tip: For viscous products such as edible oils or syrups, derate the flow capacity by 30-50% compared to water. Pre-heating to reduce viscosity can significantly improve throughput. Contact our application engineers with your complete process data for a detailed sizing recommendation.

Frequently Asked Questions
What is the difference between PP melt-blown and PP pleated cartridges?
PP melt-blown cartridges have a depth filtration structure that captures particles throughout the media thickness, offering higher dirt-holding capacity per cartridge. PP pleated cartridges use a folded surface-area design providing higher flow rates and longer service life in low-solid applications. Choose melt-blown for general clarification and pleated for polishing or when maximizing flow per cartridge.
How do I know when to replace the filter cartridges?
Monitor differential pressure across the housing. Replace cartridges when dP increases by 0.1-0.15 MPa above the clean-cartridge baseline. Alternatively, replace when flow rate drops below your minimum acceptable throughput at the same inlet pressure. Never exceed 0.25 MPa differential pressure as this may cause cartridge collapse or bypass.
Can I use the same housing for different products?
Yes, with thorough CIP between product changes. Remove cartridges, close the housing, and circulate appropriate cleaning solution. For food facilities producing allergenic and non-allergenic products, we recommend dedicated cartridge sets per product category and documented cleaning validation between changeovers.
Are stainless steel cartridges worth the higher cost?
Stainless steel sintered cartridges are reusable and can be cleaned via backflushing, ultrasonic cleaning, or chemical cleaning. In high-temperature applications (>80°C) or where chemical compatibility is a concern, stainless steel is the only option. For high-volume production where cartridge replacement frequency is high, reusable SS cartridges typically pay for themselves within 6-12 months.
What documentation is available for pharmaceutical validation?
We provide material certificates (EN 10204 3.1), surface finish reports, hydrostatic test certificates, and FDA/EC 1935/2004 compliance statements for all product-contact materials. Cartridge retention efficiency data and extractables profiles are available upon request for critical applications.
