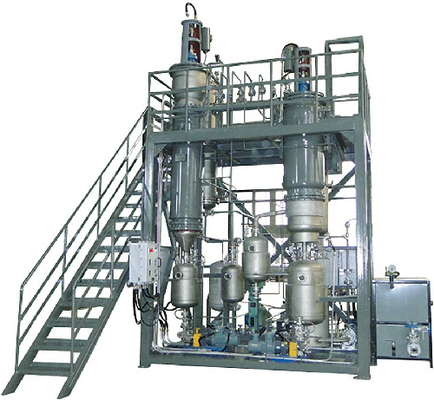

SPE Short‑Path Distiller 0.1‑15 m² | Internal Condenser Vacuum Molecular Distillation Unit for Lab Pilot Application

SPE Short‑Path Distiller 0.1‑15 m² | Internal Condenser Vacuum Molecular Distillation Unit for Lab Pilot Application
SPE Short‑Path Distiller 0.1‑15 m² | Internal Condenser Vacuum Molecular Distillation Unit for Lab Pilot Application

Large Image :  SPE Short‑Path Distiller 0.1‑15 m² | Internal Condenser Vacuum Molecular Distillation Unit for Lab Pilot Application

Product Details:
Place of Origin: China
Brand Name: Juneng
Certification: ISO 9001:2015, CE
Model Number: SPE-0.1 ~ SPE-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 15000-150000 / Set
Packaging Details: Export-grade wooden case packaging
Delivery Time: 30-60 working days
Payment Terms: T/T,L/C
Supply Ability: 30 Sets per Month
Contact Now Chat Now

SPE Short‑Path Distiller 0.1‑15 m² | Internal Condenser Vacuum Molecular Distillation Unit for Lab Pilot Application

Description
Heating Area: 0.1- 15 M² Inner Diameter: 80-900 Mm
Total Height: 780-5880 Mm Scraper Type: H / T / J / G / Z / L
Material: 304 / 316L Stainless Steel (customizable) Warranty: 1 Year
Highlight:

Built-in Condenser Short Molecular Path

,

Heat-Sensitive Material Low-Temperature Distillation

,

Lab Pilot Scale Molecular Distillation

SPE Short‑Path Distiller 0.1‑15 m² | Internal Condenser Vacuum Molecular Distillation Unit for Lab Pilot Application
The SPE short path distiller is a high-efficiency molecular distillation device for high-vacuum separation of heat-sensitive, high-boiling and easily oxidized materials. The condenser is built directly inside the evaporator body and faces the heated evaporation surface, greatly shortening the molecular migration distance and enabling separation far below the atmospheric boiling point. This lab and pilot scale series (SPE-0.1 to SPE-6, heating area 0.1-6 m²) is ideal for R&D, process development and small-batch production in the food & oil, pharmaceutical, aroma and fine chemical industries.
Working Principle
The SPE short path distiller relies on the difference in molecular mean free path for separation and runs continuously under high vacuum. The feed enters the heated cylinder, is wiped into a uniform thin film by the rotating scraper and flows downward. The jacket heats the thin film and the light components evaporate far below their atmospheric boiling point. The evaporated molecules travel a very short distance to the built-in condenser, condense and are discharged as the light fraction. The heavy fraction cannot reach the condenser and flows down to be discharged separately, achieving purification.
Key Features
  • Built-in condenser facing the evaporation surface for a short molecular path and high condensation efficiency
  • High-vacuum low-temperature operation for heat-sensitive, easily oxidized and high-boiling materials
  • Six scraper types available: Sliding, Flexible, Hinge, Fixed, Roller and Spiral
  • Lab and pilot scale (0.1-6 m²) for R&D, process development and small-batch production
  • Fully sealed structure with sanitary-grade materials for chemical, pharmaceutical and food processes
  • Continuous operation for stable and reproducible results
Core Structure
  • Jacketed heating cylinder providing uniform heating to form the evaporation surface
  • Rotating wiper system (sliding / flexible / hinge / fixed / roller / spiral) to force film formation and reduce wall fouling
  • Built-in coaxial condenser to shorten the molecular diffusion distance
  • Variable-frequency drive mechanism for the wiper rotor
  • Feed / discharge ports and heating / cooling medium ports
  • Sealing components to maintain high vacuum
  • Optional auxiliary units: cold trap, feed pump, concentrate pump, condensate pump, vacuum unit and control system
Technical Parameters
Model Heating Area (m²) Inner Diameter (mm) Total Height (mm)
SPE-0.1 0.1 80 780
SPE-0.5 0.5 300 2150
SPE-1 1 350 2380
SPE-2 2 500 3500
SPE-3 3 600 4300
SPE-4 4 700 5180
SPE-6 6 900 5880
Applications
  • Food & oil: natural vitamin purification, fish oil refining, essential oils, fatty acids and monoglycerides
  • Pharmaceutical & biological: pharmaceutical intermediates and plant extracts
  • Aroma & daily chemical: natural fragrance and flavor purification
  • Fine chemical: high-boiling solvents, silicone oil, additives and polymer intermediates
Frequently Asked Questions
What is the difference between short path distillation and ordinary distillation?
The SPE short path distiller has a built-in condenser, so the molecular migration distance is short and evaporation occurs far below the atmospheric boiling point under high vacuum, making it ideal for heat-sensitive and high-boiling materials. Ordinary distillation relies on boiling point difference and operates at higher temperatures, which can degrade heat-sensitive materials.
How do I select the scraper type (H / T / J / G / Z / L)?
H sliding, T flexible, J hinge, G fixed, Z roller and L spiral scrapers are selected according to material viscosity, fluidity and fouling tendency. Please provide the viscosity and temperature conditions for proper selection.
Can I buy a single unit instead of a complete system?
Yes. The distiller can be supplied as a single unit, or as a complete set together with cold trap, feed pump, concentrate pump, condensate pump and vacuum unit.
Can one unit separate multiple fractions?
A single short path distiller mainly completes one light / heavy fraction separation. To separate multiple fractions, multiple distillation units are usually connected in series.
How is the vacuum maintained?
The unit body provides the evaporation and separation section, while the high vacuum is generated by an external vacuum unit. Vacuum systems and cold traps can be supplied as part of the package.
Does it support continuous industrial production?
Yes. The SPE series covers pilot to large industrial sizes, from 0.1 m² pilot units to 50 m² industrial units, enabling continuous feed-distillation-discharge for industrial production lines.
