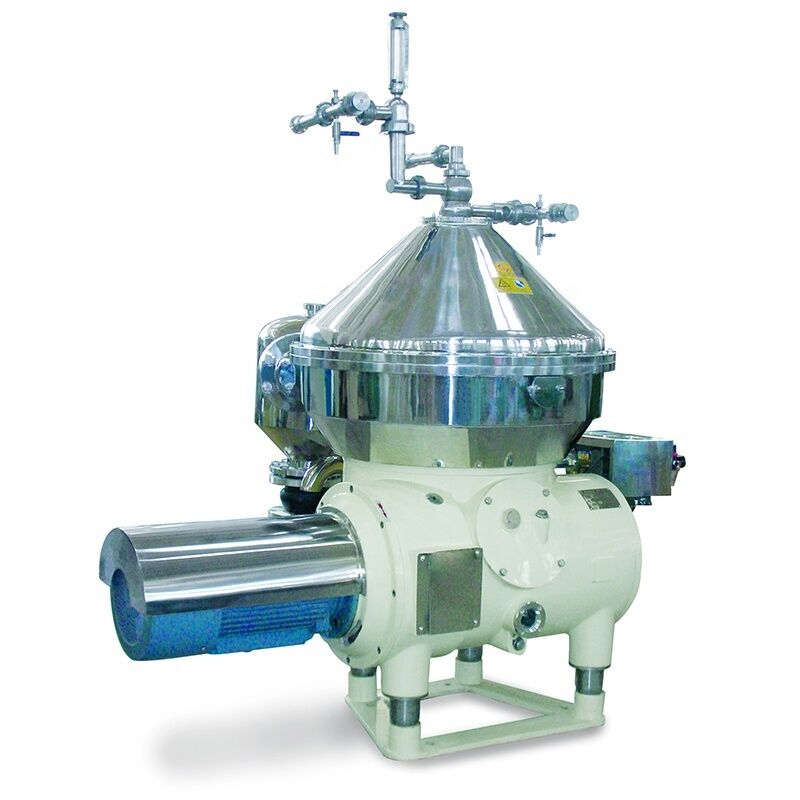

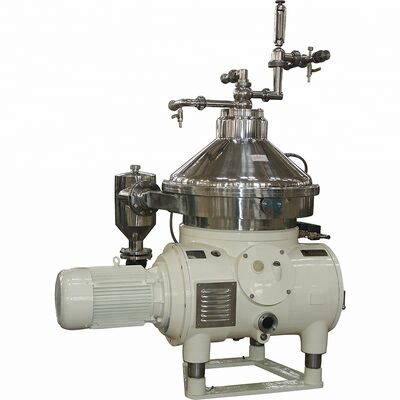

Disc Stack 2 Phase Milk Clarify Centrifuge Separator
Product Overview
As living standards continue to rise, the dairy and beverage consumer market expands, driving demand for advanced processing equipment. Juneng's centrifugal separator features specially designed centripetal pumps and inlet/outlet ports that create a gentle separation environment, preserving active ingredients while maintaining nutritional value, freshness, and original flavor.
Our milk cream separator is primarily used in the dairy processing industry to continuously separate cream and defatted milk from pure milk while removing impurities and sediments. It also enables milk standardization based on fat content and can separate extremely small solid particles (less than 1mm) dispersed in suspensions from the liquid phase.
Separator Models
DHN Model - Dairy Clarification
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension (mm) |
| DHN360 |
2000-5000 |
0.05 Mpa |
0.1-0.35 Mpa |
1200 kg |
1530×1150×1500 |
| DHN470 |
5000-10000 |
0.05 Mpa |
0.1-0.4 Mpa |
1600 kg |
1800×1200×1750 |
| DHN550 |
10000-20000 |
0.05 Mpa |
0.1-0.4 Mpa |
2300 kg |
1950×1550×1960 |
| DHN616 |
25000-35000 |
0.1 Mpa |
0.3 Mpa |
3000 kg |
2185×1728×2082 |
DHNZ Model - Dairy Skimming
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension |
| DHNZ204 |
500-1000 |
0.05 Mpa |
0.1-0.2 Mpa |
520 kg |
810×850×1350 |
| DHNZ360 |
1000-3000 |
0.05 Mpa |
0.1-0.2 Mpa |
1200 kg |
1530×1150×1500 |
| DHNZ470 |
3000-7000 |
0.05 Mpa |
0.1-0.2 Mpa |
1600 kg |
1800×1200×2030 |
| DHNZ550 |
5000-10000 |
0.05 Mpa |
0.1-0.2 Mpa |
2300 kg |
1950×1550×1960 |
Working Principle - Dairy Skimming
The disc separator is specially designed for two-phase and three-phase separation. Two-phase separation involves separating suspended solids from liquids or separating two immiscible liquids with different specific gravities. Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.
Working Principle - Dairy Clarification
Clarification refers to two-phase separation where materials are fed into the machine's bowl. Under strong centrifugal force, impurities are removed from raw materials to produce clean milk.
Key Advantages
- Continuous feeding operation
- High separation factor
- Automatic residue discharging
- CIP (Clean-in-Place) capability
- Hydraulic coupling driving for longer service life
- PLC system automatic control
- Excellent milk skimming performance
- High operational efficiency
- Lower energy consumption
- Gentle feeding and discharging through inlet/outlet ports
Applications
- Hot milk separation
- Cold milk separation
- Whey protein separation
- Buttermilk separation
- Dairy whey clarification
- Disinfection of dairy products
- Casein processing
- Syrup clarification
- Vegetable juice clarification
- Tea drinks, coffee, beer and other liquid clarification
Technical Specifications
Rotating Bowl Drum Components
All parts and components contacting materials are manufactured from stainless steel, minimizing corrosion and meeting food industry hygiene requirements. The separator bowl undergoes precise dynamic balancing for stable operation with minimal vibration and noise.
Vertical and Horizontal Shaft Assembly
All components are constructed from stainless steel with high-quality machining and precision assembly for reliable high-speed operation.
| Material |
Super stainless steel |
| Function |
High-speed operation |
| Assembly |
Precision assembly |
| Speed |
5000-12000 RPM |
PLC Control System
The separator includes an automatic control cabinet with industrial computer and automatic overload protection. This highly automated system adapts easily to process changes, simplifies adjustments, and reduces operational labor requirements.
Quality Assurance
Our company maintains a first-class laboratory for comprehensive testing including chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetic inspection, and ultrasonic inspection. Advanced instrumentation and rigorous quality control ensure every component is stable and reliable.
Packaging & Delivery
| Size |
1800(L)×1800(W)×1800(H) - varies by model |
| Weight |
1000kg-3000kg |
| Packaging Details |
Standard wooden box packaging. For European exports, wooden boxes are fumigated. Alternative packaging available for container constraints or special customer requirements. |
