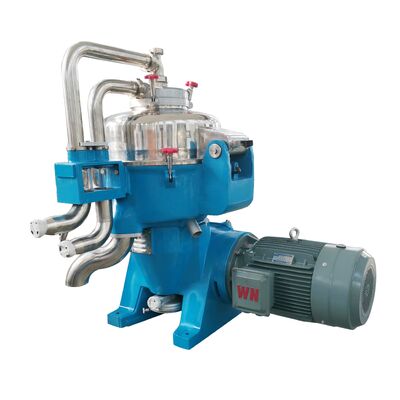

4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice

4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice

Large Image :  4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: CE, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $30,000-32,000 / set
Packaging Details: Standard Wooden Case
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 40 set / months
Contact Now Chat Now

4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice

Description
Product Type: Starch Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Engine, Bearing, Motor, Drum
Voltage: 220 Power(w): 30000
Dimension(l*w*h): 1284*1407*1457 Mm Warranty: 1 Year
Key Selling Points: High Productivity Capacity: 501-1000l/h
Weight (KG): 1880 Setting Speed: 4000 RPM
Product Name: Nozzle Separator After Warranty Service: Spare Parts
Type: Grain Processing Equipment Application: Wheat / Corn / Cassava Starch
Rotate Part: Drum Drum Material: Duplex Steel
Disc Material: SS316 Marketing Type: New Product 2020
Applicable Industries: Food & Beverage Factory
Highlight:

4000RPM Disc Stack

,

1880kg Disc Stack

,

Starch RiceNozzle Separators

DISC STACK NOZZLE SEPARATORS for STARCH RICE
DPF445 Disc Separator
Main equipment used in the small starch process industry. DPF445 disc separator features upper belt transmission structure and adopts upper suspended supporting type for the main shaft, using nozzle discharge.
The separated material is input into the heart of the separator (the drum). By the strong centrifugal force field, the material (hybrid liquid) passes through the separation partition consisting of disk string. Using the neutral holes in disk as the separating surface, the liquid with higher specific gravity (heavy phase) moves outward from the neutral holes along the disk wall, and the heavy residue accumulates at the residue-settling area, while the soap residue flows toward the big centripetal pump.
The liquid with lower specific gravity (light phase) moves inward and upward along the disk wall, then assembles at the small centripetal pump. The heavy and light phases are output separately by small and big centripetal pumps. Maximum pressure must be less than 0.3MPa.
The separator requires little maintenance and has a long service life.
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 0
DPF Series Disc Separator Characteristics
  • Large production capacity and regulation range with good separation results
  • Large diameter drum and disk provide substantial separation space and sedimentation room, extending material residence time for improved separation effects and increased processing capacity
  • Utilizes internal circulation to improve separation effects and concentration of heavy phase (underflow thickness can reach up to 20Be)
  • Upper lifting type drum configuration ensures stable operation with no material leakage, no pollution in vertical shaft system, and easy maintenance
  • Long-term continuous operation with minimal stops and stable performance; infrequent drum and disk washing required
  • Outer-block nozzle is easy to wash without disassembling the disk; large nozzle diameter and excessive nozzle quantity prevent blocking
  • Uses imported SKF bearings with high capacity and long lifespan; automatic oil pump controlled by PLC ensures safe and reliable lubrication
  • Vertical shaft features bi-support even intensity balanced framework for excellent fatigue resistance and good stress condition
  • Great load capacity of strap with long lifespan; easy strap replacement without disassembling vertical shaft; spring tensioning ensures stable stress, no skidding
Customer Application: Indian Starch Factory
PO Date: 2015-5-17
Model: DPF 800
Delivery Date: 2015-8-17
On-site Service: Training operators to use the machine and providing repair and maintenance services as needed
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 1
Packaging & Delivery
Packaging Specifications
Size Main body: 3300×1700×3200 mm
Weight 5000 kg
Packaging Details Normal package is wooden box. For European exports, wooden boxes are fumigated. Alternative packaging available for tight containers or special customer requests.
Transport Domestic: by truck; Overseas: by sea or train
Testing & Inspection
  • Material Test Report
  • Magnetic Particle Examination
  • Nondestructive Examination
  • Liquid Penetrant Examination
  • Dynamic Balancing Test
  • Radiographic Examination
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 2 4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 3 4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 4 4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 5 4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 6
Certifications
We have obtained various certifications including:
  • ASME U (Certificate No.: 38793)
  • ISO 9001:2015 (Certificate No.: CN1299-QC)
  • ISO 14001:2015 (Certificate No.: CN1299-EC)
  • ISO 45001:2018 (Certificate No.: CN1299-SC)
  • BV and CE certifications
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 7 4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 8
Exhibitions
We have attended various international exhibitions including ACHEMA, AchemAsia 2019, ProFood Tech, 21st Interphex Week Japan, Spring and Autumn Canton Fair, and other domestic fairs.
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 9
Related Products
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 10
Small Capacity Disc Separator
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 11
Self-cleaning Candle Filter
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 12
Decanter Centrifuge
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 13
Oil Bleaching Filter System
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 14
Disc Separator Whole System
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 15
Horizontal Plate Filter
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 16
Scraper Centrifuge
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 17
Multi-bags Filter
4000RPM 1880kg Disc Stack Nozzle Separators For Starch Rice 18
Disc Separator Directly Connected
