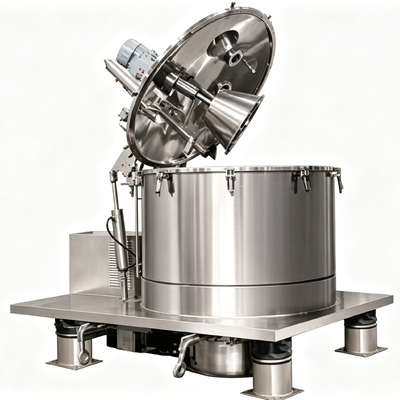

PGZ Scraper Bottom Discharge Plate Centrifuge 1250mm Drum 400L 18.5kW 304 Stainless Steel

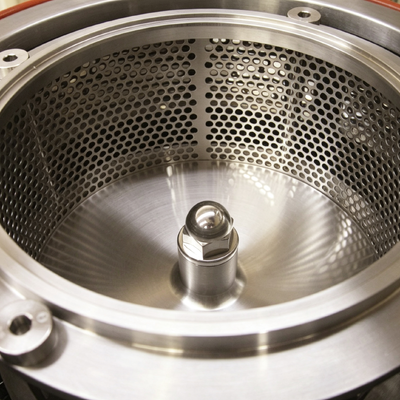

The PGZ series is designed for plants that dewater large volumes day after day and require consistent outcomes independent of operator skill. A rectangular flat plate frame carries a vertical perforated drum, and a programmable scraper automatically removes the cake from the drum bottom, ensuring every batch follows the same cycle time with minimal manual effort.

1. Feed: An inclined step feeder lays the suspension evenly across the drum wall, preventing unbalanced loads that cause machine vibration.
2. Spin-up: The V-belt or direct drive accelerates the drum, building centrifugal force that drives liquid through the medium.
3. Wash and dewater: Wash liquor is sprayed onto the rotating cake, followed by spinning to achieve target moisture levels.
4. Scrape and discharge: The drum slows, a radial and axially moving knife peels the cake away, and an air-assist line sweeps remaining solids through the bottom outlet.

While sharing a frame with other plate machines, the PGZ distinguishes itself through its discharge end and drive system:

• Scraper carriage: A hardened knife on a dedicated carriage maintains uniform cut depth as the cake thins toward the wall.
• Air-assisted discharge: A sealed air path pushes out sticky or slow-flowing cakes that gravity alone cannot remove.
• Drive flexibility: Options include side motor with V-belts, dual-speed motor, VFD, or belt-free direct top drive that eliminates belt wear and allows wider bottom outlets.
• Low-vibration base: Elastic dampers under the rectangular plate replace traditional three-column hangers, minimizing vibration transfer to floor slabs.

• Automated cycle increases throughput and reduces staffing requirements per shift
• Complete processing - feed, wash, dewater and discharge - occurs within one closed machine
• Flat plate frame drains completely without hidden pockets, enabling quick product changeovers
• Wetted parts available in 304 or 316L stainless steel for pharmaceutical and fine chemical applications

Continuous dewatering and washing of crystalline and granular solids in pharmaceuticals, fine chemicals, food processing, salt production, starch manufacturing, and mineral processing applications.

Automatic scraper bottom discharge, where a radial and axial scraper cuts the cake and drops it through the bottom of the drum.

Yes. The flat plate base has no dead corners, enabling straightforward full-machine cleaning that meets pharmaceutical and fine chemical GMP requirements.

Yes. Washing and dewatering occur in place before discharge, with air-assist discharge available for sticky cakes.

304 or 316L stainless steel, matched to your product's corrosion resistance and hygiene requirements.

Share your particle size, solid content, batch volume and required output, and our engineers will match drum size, volume and motor power to your needs.
