Disc Centrifuge Self-Cleaning Separator 20m³/h for Waste Engine Oil Purification

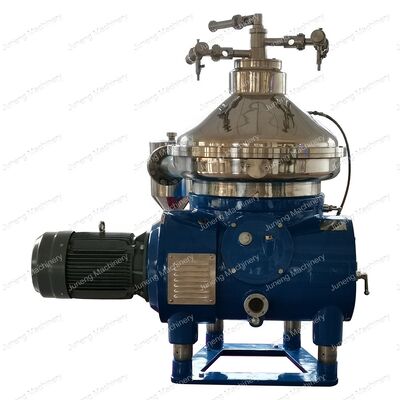

Large Image : Disc Centrifuge Self-Cleaning Separator 20m³/h for Waste Engine Oil Purification

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Juneng Machinery
Certification:	ISO 9001:2015, CE
Model Number:	DHKY470

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 8,000-35,000 / Set
Packaging Details:	Export-grade plywood case with vacuum-sealed moisture barrier and foam cushioning
Delivery Time:	5-7 days for stock, 25-35 days for custom order
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	50 Sets per Month

Contact Now Chat Now

Disc Centrifuge Self-Cleaning Separator 20m³/h for Waste Engine Oil Purification

Description

Capacity:	3-10 M³/h	Bowl Speed:	6500-7200 RPM
Motor Power:	15 KW	Inlet Oil Temperature:	40-90 °C
Working Pressure:	0.1-0.2 MPa	Dimensions:	1800×1200×1800 Mm
Highlight:	Self-Cleaning Sludge Discharge , Waste Oil Dehydration Demulsification , Continuous Three-Phase Separation

Disc Centrifuge Self-Cleaning Separator 20m³/h for Waste Engine Oil Purification

Product Overview

The DHKY470 is a self-cleaning disc stack centrifuge engineered for waste engine oil purification. It removes water, sludge, carbon fines, and metal particles from used lubricating oil through high-G three-phase centrifugal separation. With automatic slag ejection and PLC touch-screen control, it enables continuous 24/7 operation with minimal operator intervention.

Technical Specifications

Parameter	Specification
Type	Self-Cleaning Disc Centrifuge
Capacity	3-10 m³/h
Bowl Speed	6500–7200 RPM
Motor Power	15 kW / 3-Phase / 380V 50Hz
Separating Factor	≥10,000 G
Disc Material	SS 316L
Bowl Material	Duplex SS 2205
Sludge Discharge	Automatic Partial / Total Ejection
Control	PLC + 7-inch HMI Touch Screen
Inlet Temperature Range	40–90 °C
Sludge Space Volume	12 L
Noise Level	≤78 dB(A)
Dimensions (LWH)	185012001800 mm
Net Weight	1880 kg

Applications

Waste Engine Oil Recycling: Re-refining used motor oil, gear oil, hydraulic oil into base oil feedstock
Industrial Lube Oil Reclamation: Turbine oil, compressor oil, transformer oil purification
Marine Engine Waste Oil: Sludge and bilge oil pre-treatment for MARPOL compliance
Metalworking Fluid Recovery: Removing tramp oil and solids from cutting fluids

Working Principle

The DHKY470 uses high-speed centrifugal force generated by a rotating bowl stack of conical discs. Feed oil enters the bowl through a central pipe and is distributed between disc gaps. Under 10,000G+ centrifugal force, the three phases separate by density: clean oil exits the centripetal pump at the top light-phase outlet, water is discharged through the heavy-phase port, and solids accumulate on the bowl wall. The self-cleaning mechanism periodically opens the bowl discharge ports via hydraulic pressure, ejecting accumulated sludge without stopping the machine.

Selection Guide

Model	Capacity	Motor Power	Best For
DHKY360	1-5 m³/h	7.5 kW	Small workshops, pilot plants
DHKY470	3-10 m³/h	15 kW	Mid-scale re-refining plants
DHKY550	5-20 m³/h	22 kW	Large industrial recovery lines
DHKY611	3-10 m³/h	18.5 kW	High-throughput refinery operation

FAQ

Q: What types of waste oil can the DHKY process?

It is mainly applied for fuel purification and lubricant regeneration treatment for marine and onshore power station equipment. It effectively reduces diesel engine wear and extends the service life of mechanical equipment.

Q: Does it require pre-treatment?
A: We recommend a coarse screen filter (60–100 mesh) upstream to remove large debris. For heavily emulsified oil, pre-heating to 60–80 °C improves separation efficiency.

Q: How often does the self-cleaning cycle trigger?
A: The PLC allows programmable partial ejection intervals (5–60 min adjustable) based on sludge content. Total ejection can be set for end-of-batch or high-sludge scenarios.

Q: What is the typical water and solid removal rate?
A: Final oil achieves ≤0.1% water and ≤0.05% solid content after single-pass operation.

Q: Is installation and training included?
A: We provide commissioning manuals, remote video guidance, and optional on-site installation by our engineers (quoted separately based on location).
