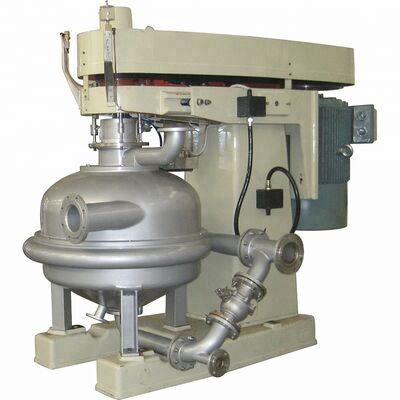

Large Capacity Corn Starch Concentration Centrifuge Separator
The DPF800 disc separator is the primary equipment used in large-scale starch processing industries, featuring advanced design for optimal performance and efficiency.
The DPF800 disc separator features an upper belt transmission structure with a suspended main shaft design and nozzle discharge system, delivering significantly higher operational benefits compared to other starch separator configurations.
Applications
- Corn starch and gluten separation
- Concentration of gluten
- Pre-concentration of starch milk
- Clarification processes
- Suitable for similar product separation applications
Specifications
The separator consists of base, cantilever, hydraulic oil cylinder, motor ram, main axis suspension device, drum, upper volute, and lower volute components.
The base serves as the machine's frame structure, connecting the axis and pedestal. The lower shell and lifting oil cylinder cover are directly fixed to the base.
The suspension branch installs the motor ram and axis cantilever, with the upper volute suspended on three sleeves. Connected to the vertical axis via an ascending oil cylinder, the suspension branch can be raised by the hydraulic pump station and rotated around the oil cylinder's axes.
The drum assembly includes drum axis, disk rack, drum body, drum cover, seal ring, disk, refluence pipe, diffluence pipe, and nozzle, connected to the main axis through a large nut.
The axis suspension facility contains bearings and other components, with a triangle strap on the upper side. Motor ram features rolling wheels for guide rail movement, and a spring tensioner regulates triangle adhesive tape tension.
Main Technological Parameters
| Inner Diameter of Drum |
800mm |
| Nozzle Diameter |
1.8 - 3.4 mm |
| Separation Factor |
Max 4600 |
| Main Axis Rotation Speed |
Max 3050 rpm |
| Motor Power |
90-132KW |
Company Profile
Juneng Group is a large-scale industrial manufacturer in China, specializing in research, development, and production of industrial filters, separators, centrifuges, and pumps. With three production bases spanning 280,000 square meters in Nanjing and Yixing City, the company employs over 1,100 people and operates more than 2,000 units of advanced production equipment and testing instrumentation.
Packing & Delivery
Packaging includes plastic film wrapping inside and wooden case protection outside for secure transportation.
Testing & Inspection
- Material Test Report
- Magnetic Particle Examination
- Nondestructive Examination
- Liquid Penetrant Examination
- Dynamic Balancing Test
- Radiographic Examination
Certifications
Our company holds numerous certifications including ASME U (Certificate No.: 38793), ISO 9001:2015 (Certificate No.: CN1299-QC), ISO 14001:2015 (Certificate No.: CN1299-EC), ISO 45001:2018 (Certificate No.: CN1299-SC), BV, and CE certifications.
Exhibitions
We regularly participate in international exhibitions including ACHEMA, AchemAsia 2019, ProFood Tech, 21st Interphex Week Japan, Spring and Autumn Canton Fair, and various domestic trade shows.
Frequently Asked Questions
How can we visit your factory?
International visitors can fly to Shanghai airport for pickup service. Domestic visitors can travel by air or train to Wuxi station for railway station pickup.
How do you ensure the quality of your products?
As a state-owned enterprise with over 30 years of experience, we implement strict operational policies, advanced processing machinery, licensed operators, multi-stage part processing, international brand transmission and electrical components, and comprehensive testing throughout production.
What payment methods does your company accept?
We accept various payment methods, primarily T/T and L/C at sight.
How long is the warranty time for your products?
Our standard warranty period is 12 months after commissioning.
I haven't done business with your company before, how can I trust your company?
We have been a Golden Supplier on Alibaba.com for over 10 years with numerous authority certificates including CE, ISO9001, and Alibaba onsite check certification. Our Trade Assurance Limit is US$42,000 and growing.
What are the shipment terms and delivery time?
Delivery time depends on order quantity, typically 20 days for standard orders and 30 days for customized machines.
Do you offer discounts?
We strive to provide competitive pricing along with excellent service for all our customers.
