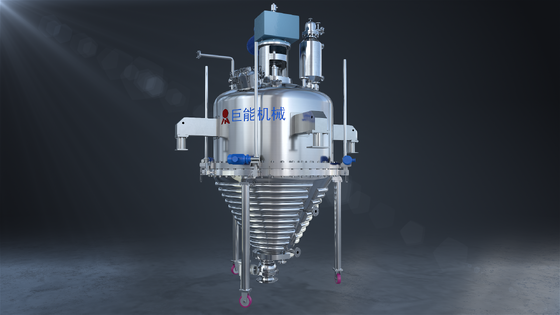

TZ1200 Cone‑Bottom Agitated Nutsche Filter Dryer | 2.0 m² Conical Filter Element, Residue‑free Full Discharge

TZ1200 Cone‑Bottom Agitated Nutsche Filter Dryer | 2.0 m² Conical Filter Element, Residue‑free Full Discharge
TZ1200 Cone‑Bottom Agitated Nutsche Filter Dryer | 2.0 m² Conical Filter Element, Residue‑free Full Discharge TZ1200 Cone‑Bottom Agitated Nutsche Filter Dryer | 2.0 m² Conical Filter Element, Residue‑free Full Discharge

Large Image :  TZ1200 Cone‑Bottom Agitated Nutsche Filter Dryer | 2.0 m² Conical Filter Element, Residue‑free Full Discharge

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Juneng
Certification: ISO 9001:2015, CE, GMP
Model Number: TZ1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 15,000-50,000 / Set
Packaging Details: Standard Wooden Case
Delivery Time: 45-65 Days
Payment Terms: T/T,L/C
Supply Ability: 15 Sets per Month
Contact Now Chat Now

TZ1200 Cone‑Bottom Agitated Nutsche Filter Dryer | 2.0 m² Conical Filter Element, Residue‑free Full Discharge

Description
Filtration Area: 2.0 M² Shell Diameter: 1200 Mm
Work Pressure: -0.1~0.3 MPa Filter Media: Conical Filter Cloth, Quick Replacement
Agitator: Hollow Ribbon, Stepless Speed Regulation Heating Method: Shell Jacket + Cone Jacket + Hollow Ribbon Internal Heat Exchange
Application: Fine Chemicals, Pharmaceutical, Pesticide, Food Discharge: Cone Bottom Automatic Complete Discharge
Highlight:

Cone Bottom Complete Discharge

,

Conical Filter Media Larger Area

,

TZ1200 Agitated Nutsche Filter Dryer

TZ1200 Cone‑Bottom Agitated Nutsche Filter Dryer | 2.0 m² Conical Filter Element, Residue‑free Full Discharge
The TZ series cone-type three-in-one machine integrates filtration, cake washing, vacuum drying and automatic discharge inside a single fully enclosed vessel. The TZ1200 is a preferred size for pharmaceutical API and fine chemical batches: its conical filter media enlarges the effective filtration area, and the cone-shaped bottom discharges the last cake completely so valuable product is never left behind. Processing fine crystals, heat-sensitive intermediates or potent compounds inside a closed system protects both the operator and the environment.
Complete Discharge Cone Design
  • The cone bottom has no flat residual zone — cake and mother liquor flow out by gravity, leaving no dead product at the end of each batch.
  • Conical filter cloth follows the vessel contour, increasing filtration area at equal shell diameter and nominal volume.
  • Discharge valve opens fully for automatic residue removal; filter media is replaced quickly through the service opening.
Core Operating Advantages
  • Fully enclosed filtration: no leakage, no solvent vapor escape and no environmental pollution.
  • Pressure or vacuum solid-liquid separation with evenly distributed filter cake and excellent separation effect.
  • Stepless speed-regulating agitator with multi-position working mode maximizes cake space, washes the cake thoroughly and shortens drying time.
  • Automatic discharge valve lowers labor intensity and keeps the process reproducible.
  • Ideal for high-solid-content feeds where liquid phase and solid phase must be recovered separately.
  • Horizontal filter media gives one-pass clean filtration with no residual liquid; the unique sealing structure makes media change fast and easy.
  • Anti-corrosion construction in special alloys extends service life in aggressive media.
  • Stirring, mixing, pulping, reaction, washing and drying are performed in one vessel under full automatic control.
Larger Filtration Area: TZ Cone Type vs Conventional Flat-Bottom Design
Compared with flat-bottom three-in-one machines of the same shell diameter, the cone-type TZ series provides up to 75% more filtration area — shorter filtration cycles and higher batch throughput per charge.
Shell Diameter (mm) Flat-Bottom Design Filtration Area (m²) TZ Cone Type Filtration Area (m²) Area Increase
600 0.28 0.5 +79%
800 0.5 0.8 +60%
1200 1.1 2.0 +82%
1600 2.0 3.5 +75%
2000 3.1 5.4 +74%
Main Technical Parameters (TZ Series)
Work pressure -0.1~0.3 MPa for all models; highlighted row = TZ1200.
Model Filtration Area (m²) Shell Diameter (mm) Work Pressure (MPa) Nominal Volume (m³)
TZ600 0.5 600 -0.1~0.3 0.16
TZ800 0.8 800 -0.1~0.3 0.4
TZ1000 1.3 1000 -0.1~0.3 1.1
TZ1200 2.0 1200 -0.1~0.3 1.9
TZ1400 2.7 1400 -0.1~0.3 2.6
TZ1600 3.5 1600 -0.1~0.3 4.2
TZ1800 4.4 1800 -0.1~0.3 5.5
TZ1900 4.9 1900 -0.1~0.3 6.5
TZ2000 5.4 2000 -0.1~0.3 7.3
TZ2200 6.5 2200 -0.1~0.3 8.5
GMP-Oriented Design for Easy Validation
  • Mirror-polished contact surfaces with minimal dead corners simplify cleaning validation.

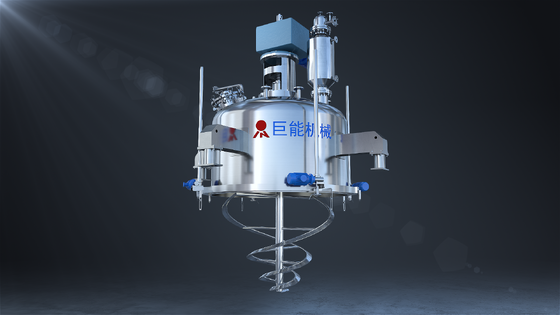

  • Hydraulically lowerable cone gives full access for internal inspection and media change.
  • Optional CIP washing nozzles and sampling ports support sterile pharmaceutical production.
  • Contact parts: SUS316L electropolished as standard; SUS304, Hastelloy, titanium alloy and PTFE lining available.
Applications
Pharmaceutical API crystallization, fine chemical intermediates, pesticide intermediates, food additives and dye/pigment slurries — especially fine crystal, heat-sensitive, easily oxidized and high-activity materials requiring contained processing.
Frequently Asked Questions
Q1. How is cake discharge different from a flat-bottom Nutsche filter dryer?
In flat-bottom designs the agitator must push the last cake layer toward the outlet and a thin residual layer often remains. The TZ cone bottom lets gravity carry the entire cake to the discharge valve, so batches end clean and product yield is higher.
Q2. Why is the filtration area larger at the same nominal volume?
The conical filter media is inclined along the cone wall, so the projected filtration surface is bigger than the flat disc of a conventional design at the same shell diameter (e.g. TZ1200: 2.0 m² vs 1.1 m²).
Q3. Can the TZ1200 meet GMP cleaning validation requirements?
Yes. Smooth welds, few dead corners, CIP option and the lowerable cone for visual inspection all support validation documentation for pharmaceutical use.
Q4. What documentation is supplied?
Material certificates, weld reports, pressure test certificates, CE declaration and an operation manual are provided with each machine.
