Soybean Oil Extraction Industrial Decanter Centrifuge Solid Liquid Separation

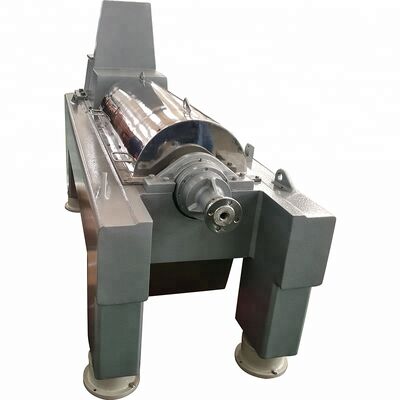

Large Image : Soybean Oil Extraction Industrial Decanter Centrifuge Solid Liquid Separation

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Juneng
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$30,000-40,000 / set
Packaging Details:	Standard Wooden Case
Delivery Time:	60 working days
Payment Terms:	T/T, L/C
Supply Ability:	40 set / months

Contact Now Chat Now

Soybean Oil Extraction Industrial Decanter Centrifuge Solid Liquid Separation

Description

Product Type:	Waste Water	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	PLC
Voltage:	Customized	Power(w):	22 Kw
Dimension(lwh):	36769801238	Warranty:	12 Months
Key Selling Points:	Long Service Life	Capacity:	1-3m3/h, Meet Requirement
Weight (KG):	1200	Setting Speed:	4000 RPM
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Name:	Centrifugal Decanter
Material:	Stainless Steel	Operation:	Continuous
Function:	Separater	Item:	Industrial Separator Centrifuge Machine
Weight:	1200	Applicable Industries:	Oil Refinery Plant
Highlight:	Soybean Oil Extraction Industrial Decanter Centrifuge , Industrial Decanter Centrifuge 3m3/h , solid liquid separation centrifuge 1m3/h

Soybean Oil Extraction Solid and Liquid Separator Centrifuge Machines

Decanter centrifuges are mechanical equipment that utilize centrifugal force and sedimentation principles to continuously separate suspended liquids with density differences.

Product Application

Our centrifuges can clarify, dehydrate, and classify suspensions with 0.002-3 mm solid-phase particles and thickness range of 0.5-40%. Available in LW-counter-current and parallel-current designs, with two-phase (LW) and three-phase (LWS) separators for different process conditions. Widely used in pharmaceutical, food, chemical, light industry, and environmental protection industries.

Model	Drum Diameter (mm)	Inlet Liquid Capacity (㎥/h)	Power of Main/Auxiliary Motor (Kw)	Weight (Kg)	Dimension (max) mm
LW250	250	1-4	11/4	1200	2650720900
LW(F)250	250	1-4	11/4	1200	2650720900
LW250(W)	250	1~5	11/4	1300	2750720900
LW350	350	5~15	22/5.5	2000	35859801238
LW(F)350	350	5~15	22/5.5	2000	35859801238
LW350(W)	350	5~18	15/5.5	2200	34121090950
LW(S)350	350	2~10	22/5.5	2000	36769801238
LW450	450	5~20	30/11	3000	438010801360
LW(F)450	450	5~20	30/11	3000	438010801360
LW450(W)	450	5~28	30/11	3200	438010801360
LW(S)450	450	5~15	37/11	3200	419510801360
LW520	520	10~26	45/15	5000	484011601465
LW(F)520	520	10~26	45/15	5000	484011601465
LW520(W)	520	10~35	16742	5000	484011601465
LW550W	550	10-45	20394	6500	503813881578
LW650A	650	7-9T	110	8000	440722801340
LW650(W)	650	25-60	75/22	8000	550022801340
LW720A	720	8-10T	132/160	11000	441032801450
LW720(W)	720	35-85	110/30	13000	560032801450

* F: Ex-proof, W: Waste water, S: Three phase, FS: Ex-proof and three phase

Main Features

All product-contact parts made of stainless steel
3-phase AC motor with controlled torque starting via frequency converter
Approximately 80-90% oil recovery rate
Low personnel costs due to continuous automatic operation
Highest g-force for superior solids output
Adjustable bowl speed via VFD
Automatic differential speed adjustment via VFD
Two motor drive system
Belts for both primary and secondary motors

Advantages

Lower cake transportation costs due to very dry solids
Better nutrient recovery with high separation efficiency
Reduced fresh water consumption compared to other processes
Continuous and fully automatic operation
24-hour operating reliability
Optimum wear protection
Energy saving design
Easy to operate and maintain
Simple assembly and dismantling

Applications

Washing and dehydration of starch
Dehydration of soybean and wheat proteins
Dehydration of fish meal and fish products
Dehydration of brewers' grains
Purification of juice and dehydration of fruit fiber
Separation and purification of animal and vegetable oils
Separation and purification of coal tar
Clarification and purification of gypsum
Classification and dehydration of starch
Classification and dehydration of Kaolin and graphite
Classification and dehydration of dyes and pigments
Classification and dehydration of mineral thick liquids

Our Company

Product Name	Manufacturing Location
Separator	Jiangsu Juneng Machinery Co.,Ltd (South)
Centrifuge	Juneng Machinery (China) Co.,Ltd (Nanjing)
Filter	Jiangsu Juneng Machinery Co.,Ltd (North)
Dryer	Juneng Machinery (China) Co.,Ltd (Nanjing)
Pump	Jiangsu Juneng Machinery Co.,Ltd (South)

Certifications

Our Service

Pre-Sales Service

Inquiry and consulting support
Sample testing support
Factory viewing opportunities

After-Sales Service

Machine installation and operation training
Overseas engineering service support
Maintenance and repair services

Packing & Delivery

Packaging	Specifications
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T

Standard packaging includes wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. Alternative packaging options available for tight containers or special customer requirements.
