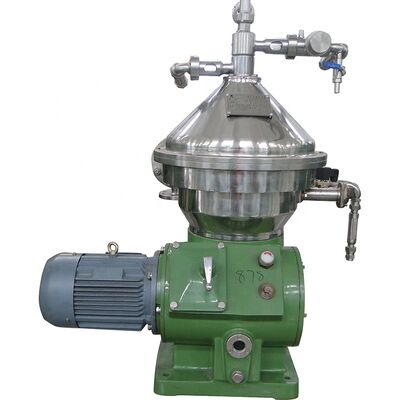

Automatic Disc Stack Stainless Steel Milk Cream Centrifuge Separator Machine
Advanced automatic milk cream production disc type centrifuge separator designed for modern dairy processing operations.
Product Overview
With increasing consumer demand for high-quality dairy products, advanced processing equipment has become essential. Juneng's centrifugal separator features specially designed centripetal pumps and inlet/outlet ports that create a gentle separation environment, preserving active ingredients while maintaining nutritional value, freshness, and original flavor.
This milk cream separator is primarily used in the milk processing industry to continuously separate cream and defatted milk from pure milk while removing impurities and sediments. It also enables milk standardization based on fat content.
Juneng separators can separate extremely small solid particles (less than 1mm) dispersed in suspensions from the liquid phase.
Separator Models
DHN Model - Dairy Clarification
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension (mm) |
| DHN360 |
2000-5000 |
0.05 Mpa |
0.1-0.35 Mpa |
1200 kg |
1530×1150×1500 |
| DHN470 |
5000-10000 |
0.05 Mpa |
0.1-0.4 Mpa |
1600 kg |
1800×1200×1750 |
| DHN550 |
10000-20000 |
0.05 Mpa |
0.1-0.4 Mpa |
2300 kg |
1950×1550×1960 |
| DHN616 |
25000-35000 |
0.1 Mpa |
0.3 Mpa |
3000 kg |
2185×1728×2082 |
DHNZ Model - Dairy Skimming
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension |
| DHNZ204 |
500-1000 |
0.05 Mpa |
0.1-0.2 Mpa |
520 kg |
810×850×1350 |
| DHNZ360 |
1000-3000 |
0.05 Mpa |
0.1-0.2 Mpa |
1200 kg |
1530×1150×1500 |
| DHNZ470 |
3000-7000 |
0.05 Mpa |
0.1-0.2 Mpa |
1600 kg |
1800×1200×2030 |
| DHNZ550 |
5000-10000 |
0.05 Mpa |
0.1-0.2 Mpa |
2300 kg |
1950×1550×1960 |
Working Principle - Dairy Skimming
The disc separator is specially designed for two-phase and three-phase separation processes.
Two-phase separation involves separating suspended solids from liquid or separating two immiscible liquids with different specific gravities.
Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.
Working Principle - Dairy Clarification
Clarification refers to two-phase separation where materials are fed into the central part of the machine bowl. Under strong centrifugal force, impurities are removed from raw materials to produce clean milk.
Key Advantages
- Continuous feeding operation
- High separation factor
- Automatic residue discharging
- CIP (Clean-in-Place) capability
- Hydraulic coupling driving for longer service life
- PLC system automatic control
- Excellent milk skimming performance
- High operational efficiency
- Lower energy consumption
- Gentle feeding and discharging through inlet and outlet
Applications
- Hot milk separation
- Cold milk separation
- Whey protein separation
- Buttermilk separation
- Dairy whey clarification
- Disinfection of dairy products
- Casein processing
- Syrup clarification
- Vegetable juice clarification
- Tea drinks, coffee, beer and other liquid clarification
Detailed Equipment Images
Rotating Bowl Drum Components
All parts and components contacting materials are made of stainless steel, effectively minimizing corrosion from materials being separated and meeting hygienic requirements for food processing.
The separator bowl undergoes precise dynamic balancing, ensuring stable operation with low vibration and noise during operation.
Vertical and Horizontal Shaft Assembly
All components are manufactured from stainless steel using high-quality machining processes for precision refining machinery.
| Material |
Super stainless steel |
| Function |
Running at high speed |
| Assembly |
Precision assembly |
| Speed |
5000-12000 RPM |
PLC Control System
The separator is equipped with an automatic control cabinet featuring an industrial computer and auto overload protector. This highly automated system provides excellent adaptability to process changes, easy adjustment capabilities, and significantly reduces operator labor requirements.
Quality Assurance
Our company maintains a first-class laboratory for comprehensive testing including chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetic inspection, and ultrasonic inspection. We utilize advanced instrumentation and rigorous working standards to ensure every product component is stable and reliable.
Packaging & Delivery
| Size |
1800(L)×1800(W)×1800(H) - varies by model |
| Weight |
1000kg-3000kg |
| Packaging Details |
Standard wooden box packaging. For European exports, wooden boxes are fumigated. Alternative packaging options available for tight containers or special customer requirements. |
Company Overview
Juneng focuses on international technical collaboration and commercial exchange to learn advanced management systems and expertise from partners in the United States, Canada, Germany, Russia, and Southeast Asian countries. The company is committed to becoming a global leader in the industrial separation equipment industry.
Customer Support Services
Pre-Sales Services
- Inquiry and consulting support
- Sample testing support
- Factory viewing arrangements
After-Sales Services
- Machine installation training
- Machine operation training
- Overseas engineering service support
Certifications & Honors
Frequently Asked Questions
How can we visit your factory?
International visitors: Fly to Shanghai airport - we provide airport pickup. Domestic visitors: Travel to Wuxi station by air or train - we provide railway station pickup.
How do you ensure product quality?
As a state-owned enterprise with over 30 years of experience, we implement strict operational policies, utilize advanced processing machines for component precision, employ licensed operators, and conduct multiple processing stages. We use internationally renowned transmission and electrical components and perform comprehensive testing throughout production.
What payment methods do you accept?
We accept most payment methods, primarily T/T and L/C at sight.
What is the warranty period?
Our official warranty period is 12 months after commissioning.
How can I trust your company?
We have been on Alibaba.com for 10+ years as golden suppliers, hold numerous certifications including CE, ISO9001, and Alibaba onsite check certificates, and maintain a Trade Assurance Limit of US$42,000+.
What are your shipment terms and delivery times?
Delivery time depends on order quantity - typically 20 days, with 30 days for customized machines.
Do you offer discounts?
We strive to provide competitive pricing while maintaining excellent service quality.
